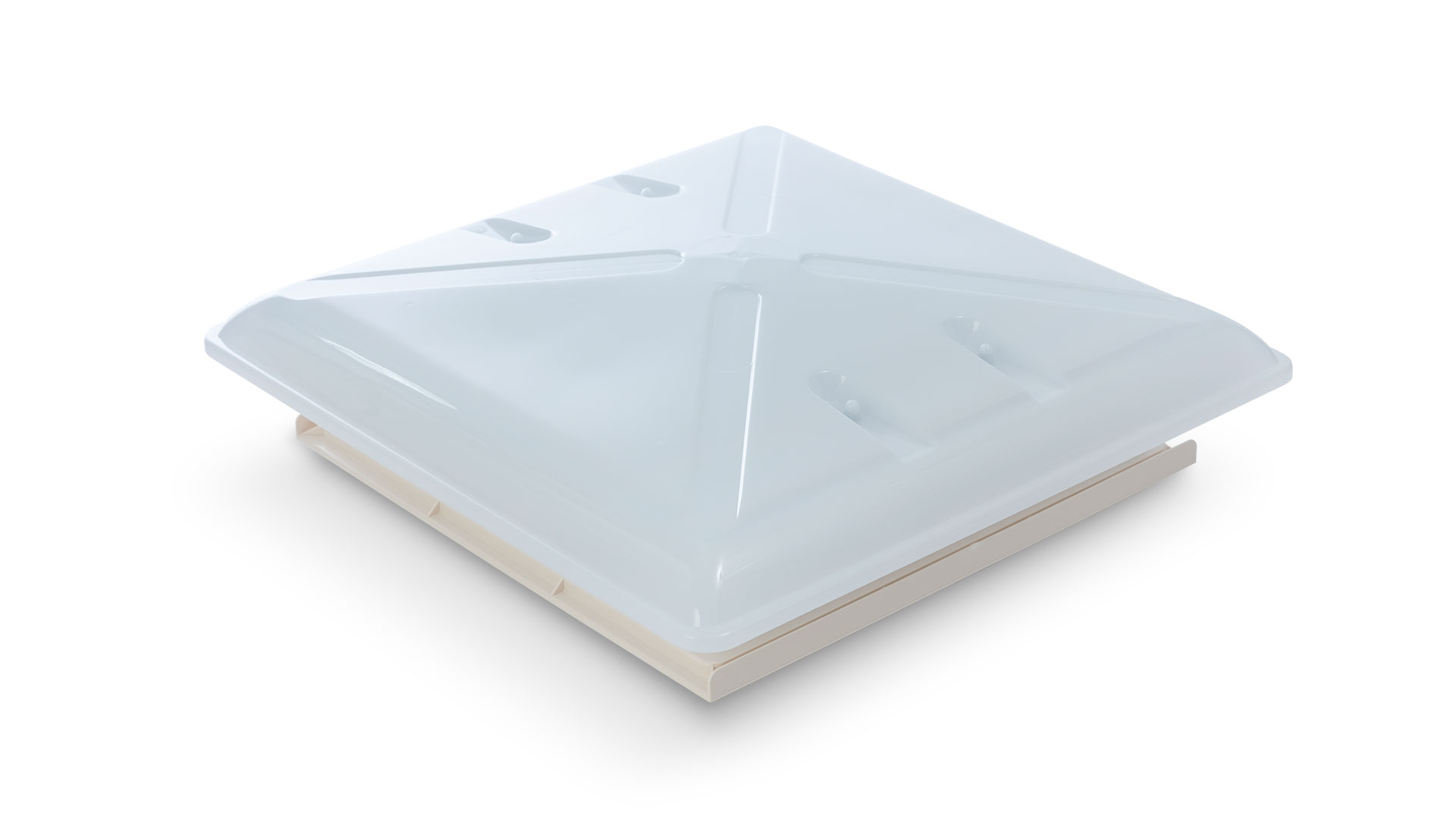

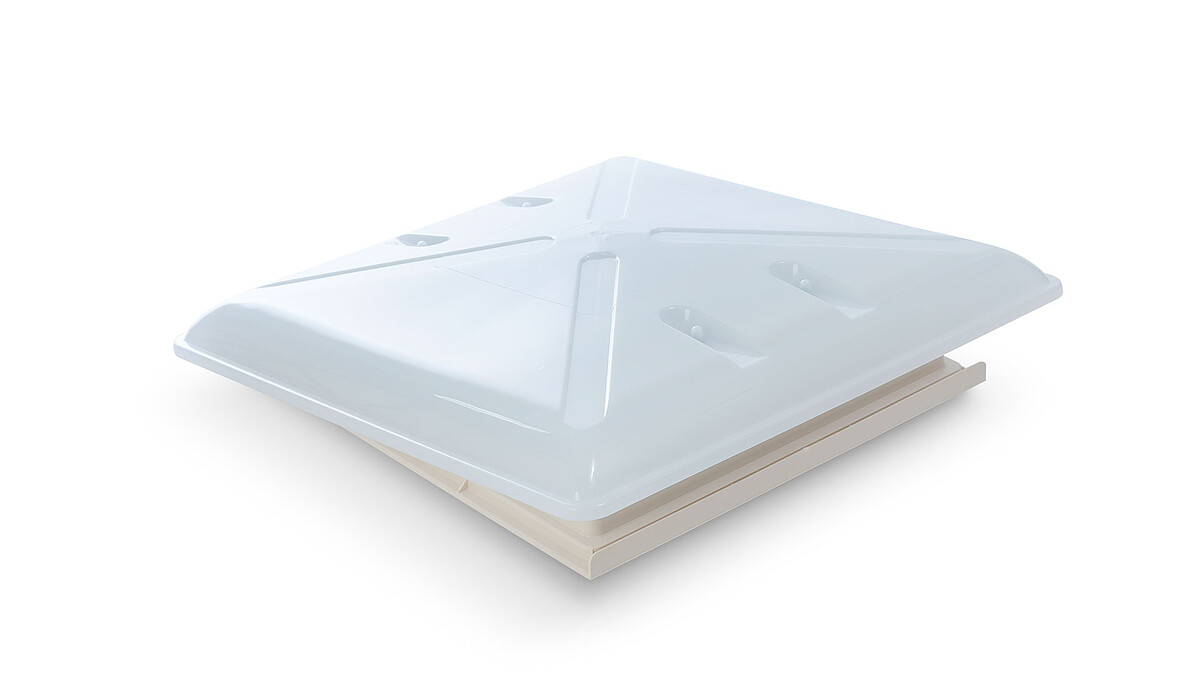

Model 46

The rooflight model 46 provides fresh air in the camper van and, thanks to polypropylene frosted glass, also gentle daylight in the interior. On the outside, the large overhang and the snow and splash protection edge protect against water penetration, while on the inside the fold-down mesh frame and optional blackout blind provide protection against insects and sunlight.


  • Outer dome made of polypropylene milk glass with large overhang
  • with snow and splash guard edge

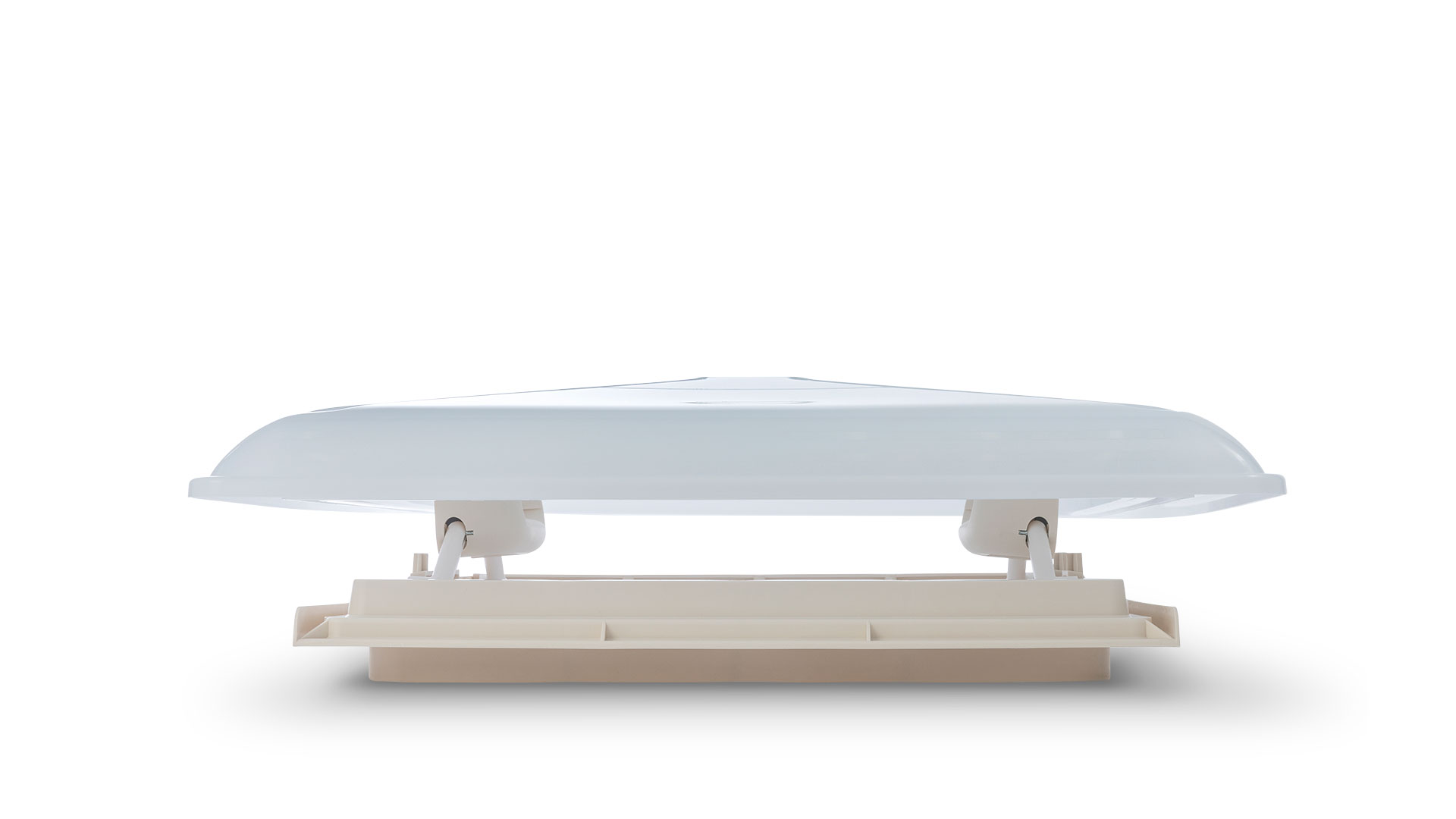

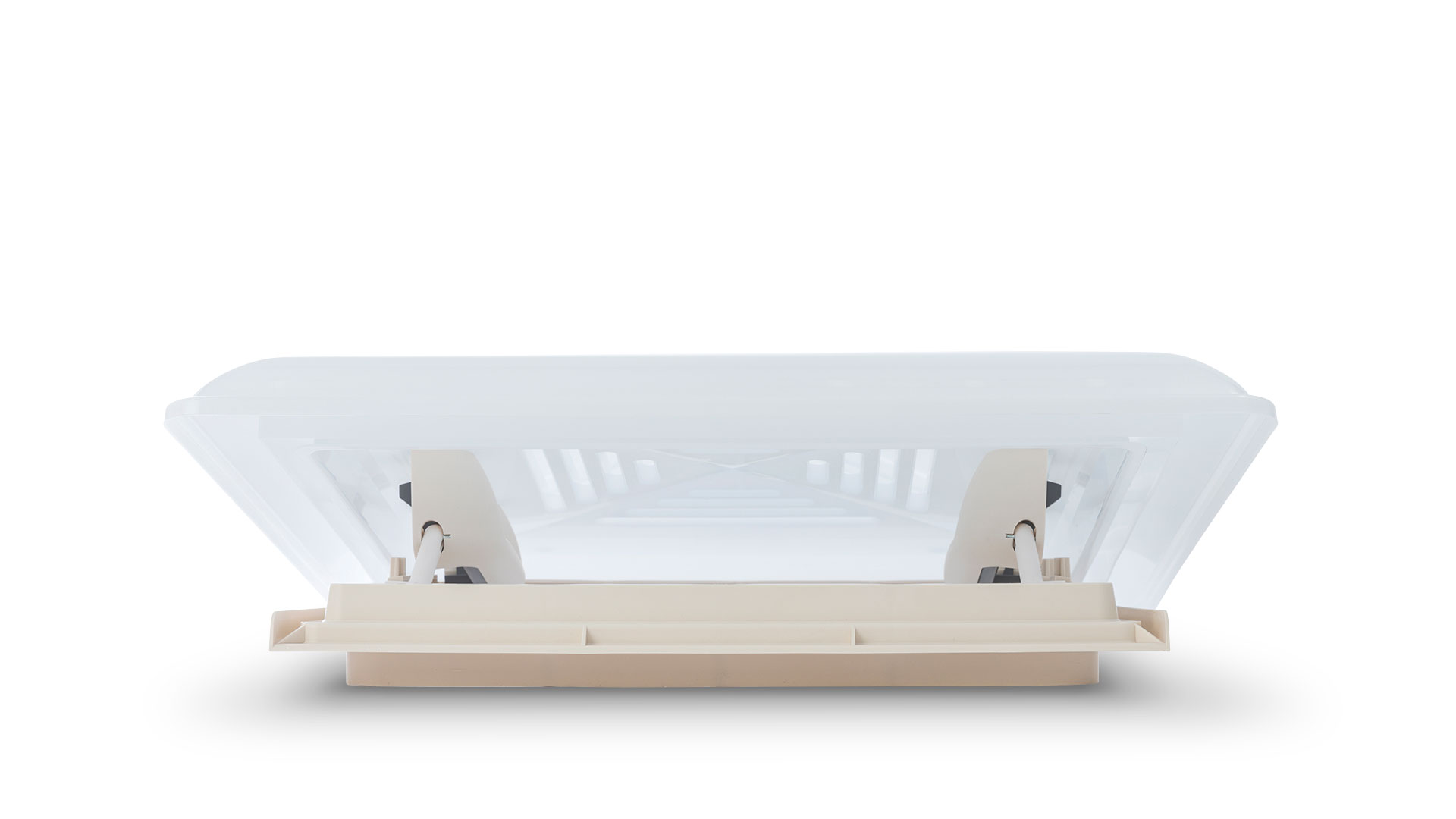

  • Telescopic display unit, tiltable on four sides, with locking device
  • Optionally with double roller blind combination frame (470 x 470 x 14 mm), folding net frame with or without blackout roller blind or pleated frame (also with LED).
  • Approval: ECE R43 -019649

Technical data

Cut-out dimension 400 x 400 mm
Roof thicknesses from - to 24-56 mm und 42-70 mm
Corner radius 28 mm
Dome size 560 x 560 mm
Continuous ventilation 150 cm²
Height above roof 92 mm
Frame dimensions 470 x 470 x 14 mm
Recommended maximum speed 130 km/h

Article numbers

Roof thick-ness From - to Roller blind Frame colour white Frame colour grey Frame colour beige Weight approx.
24-56 mm Without 460VNW 460VNG 460VNB 2715 g
24-56 mm With 460VNRW 460VNRG 460VNRB 2855 g
42-70 mm Without 461VNW - 461VNB 2805 g
42-70 mm With 461VNR - 461VNRB 2945 g


Installation and Operating instructions Modell 46 4600
pdf, 340.7 KB
