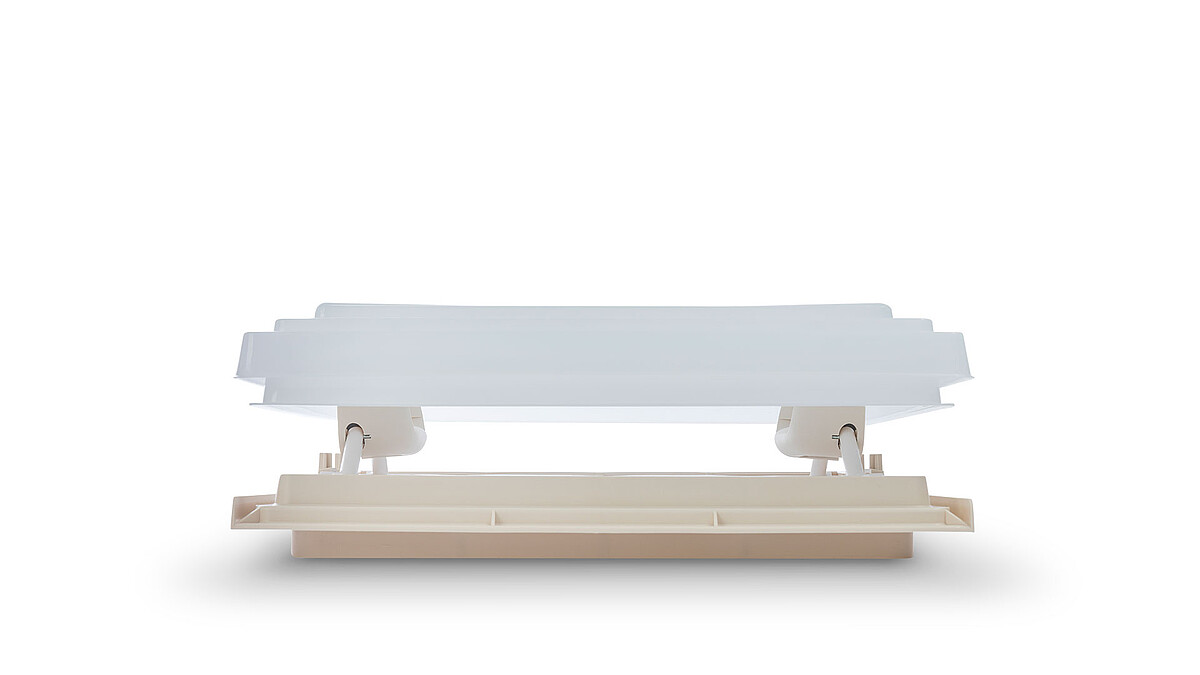

Our small and space-saving rooflight model 42 provides fresh air in the camper van and, thanks to polypropylene frosted glass, also gentle daylight in the interior. A fold-down mesh frame and the optional blackout blind guarantee protection from insects and sunlight.
Properties

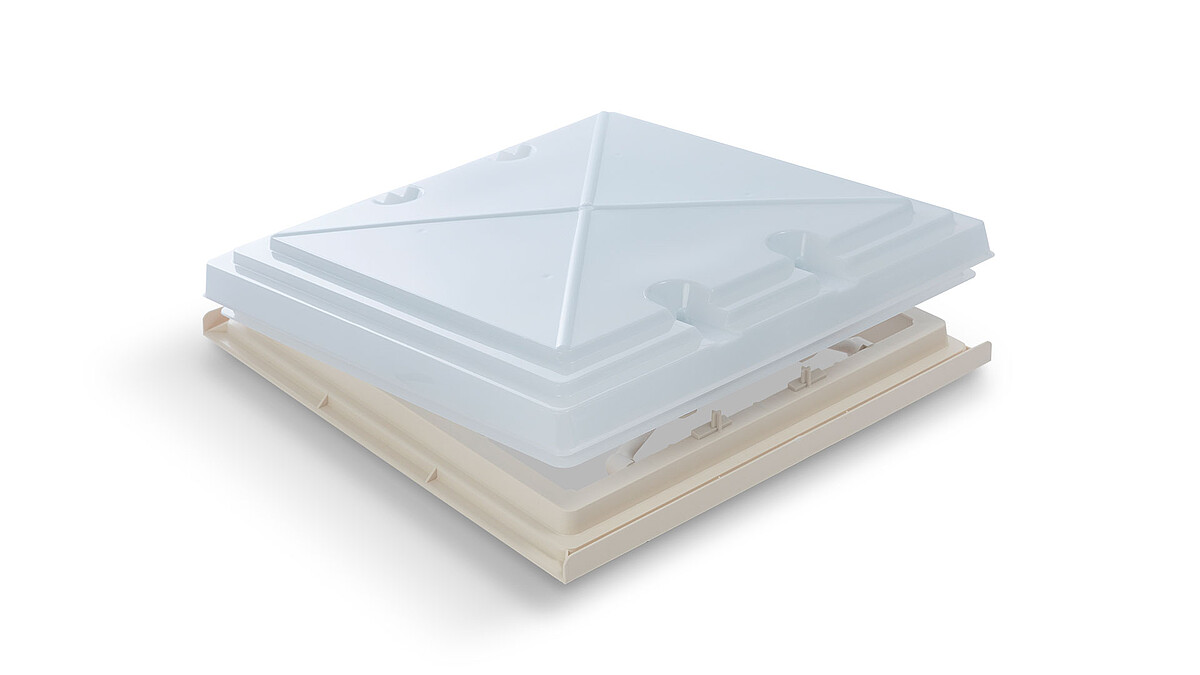

- Small, space-saving milk glass dome made of polypropylene

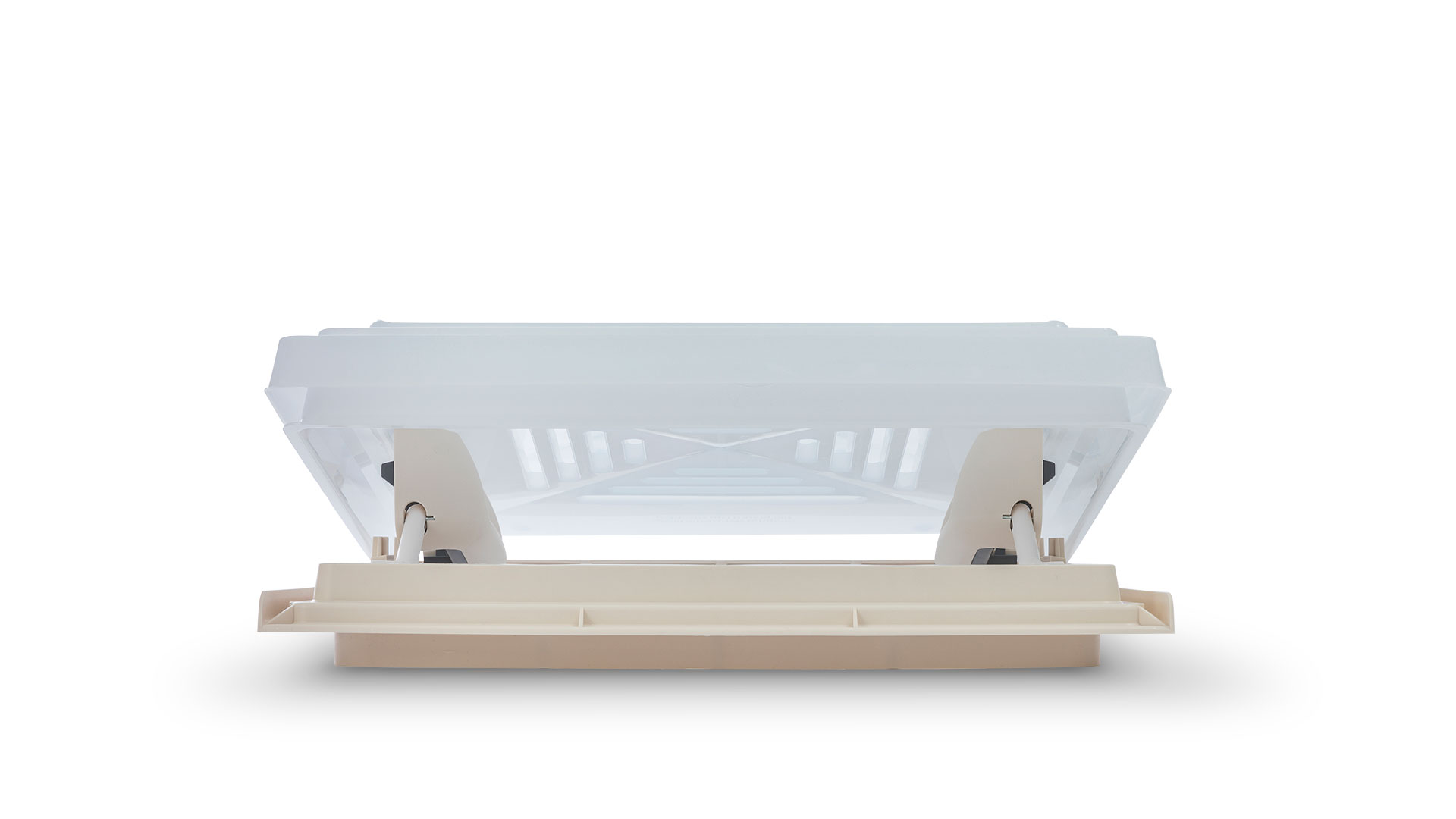

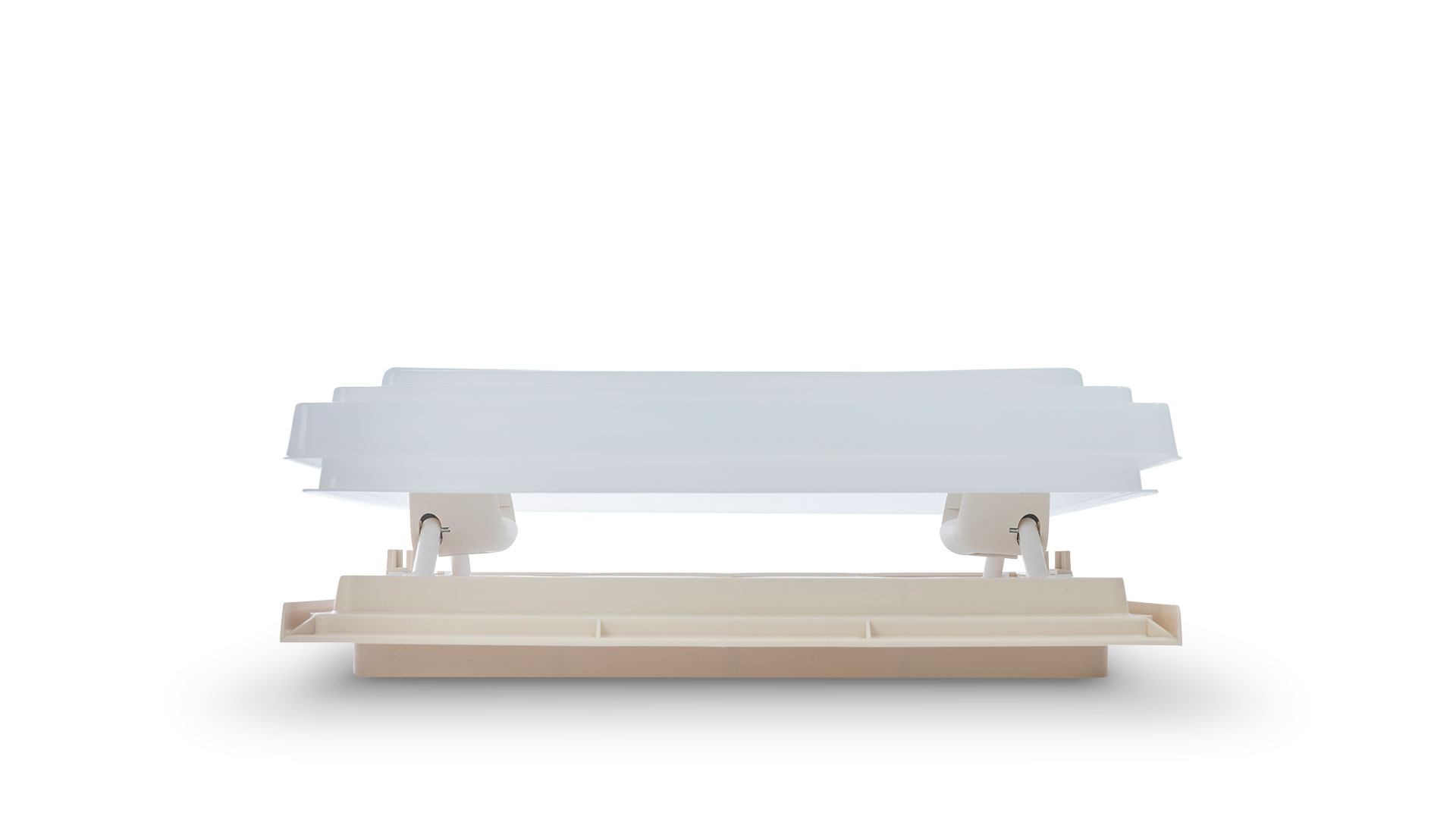

- Telescopic display unit, tiltable on four sides, with locking device

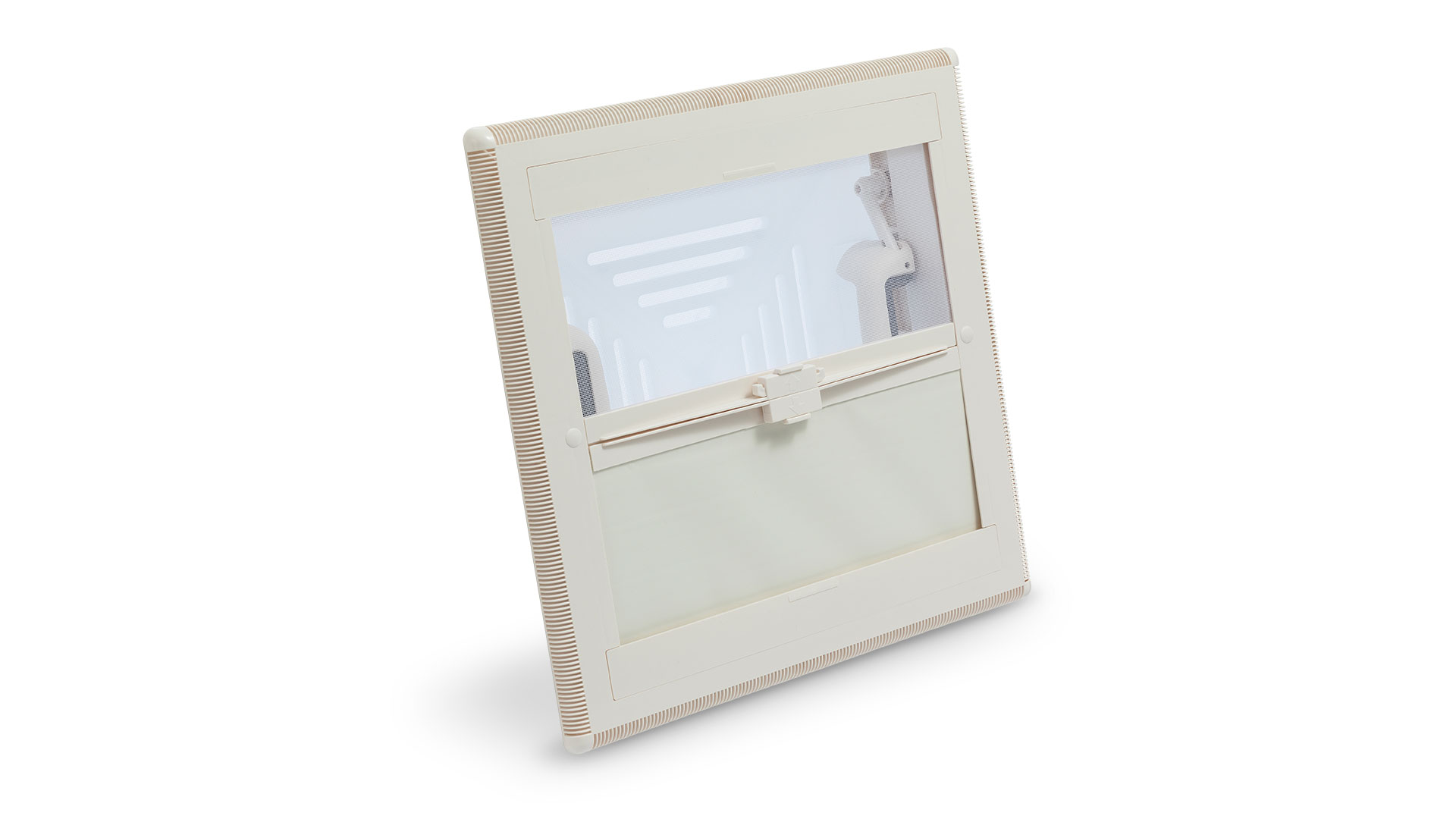

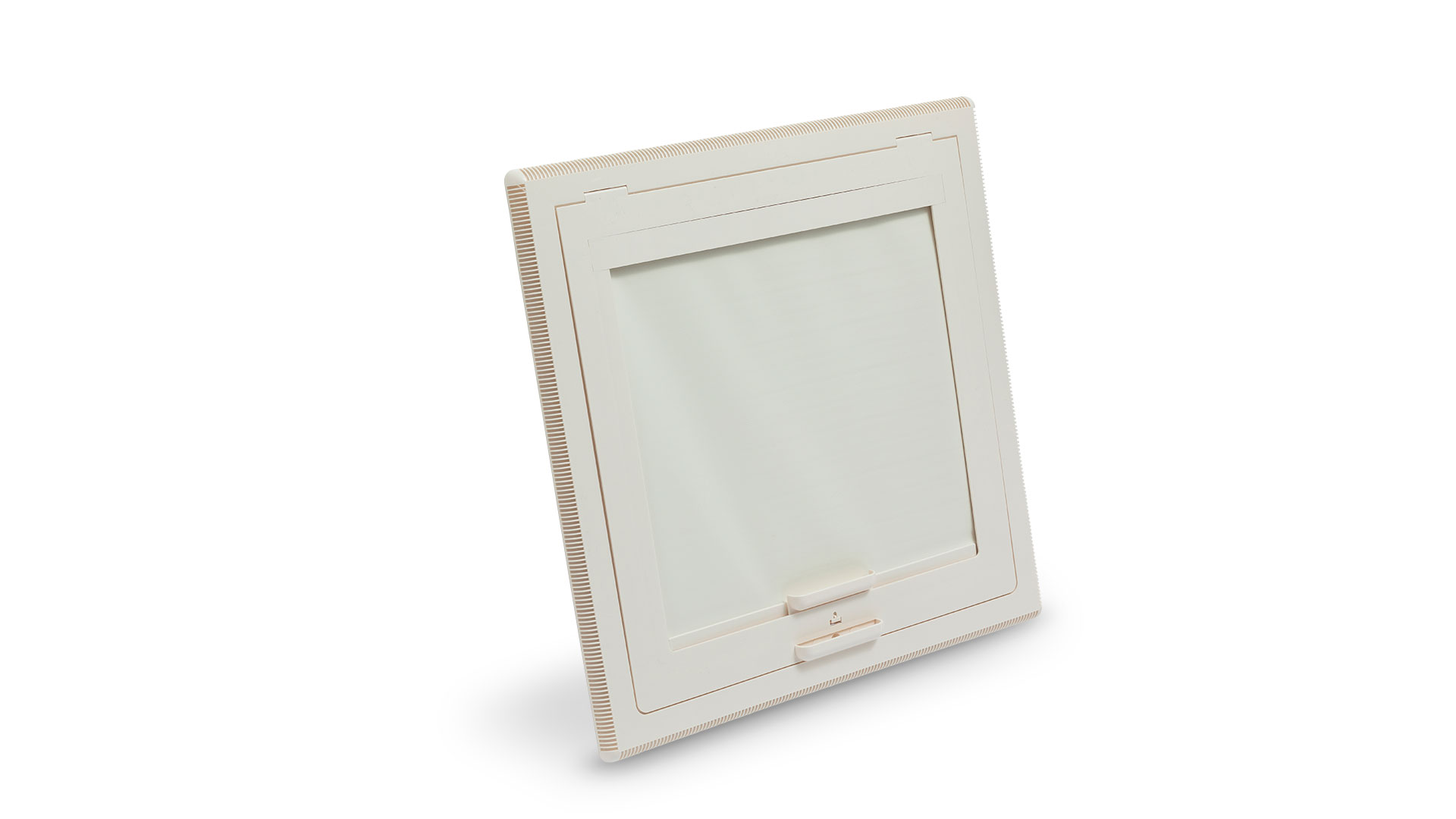

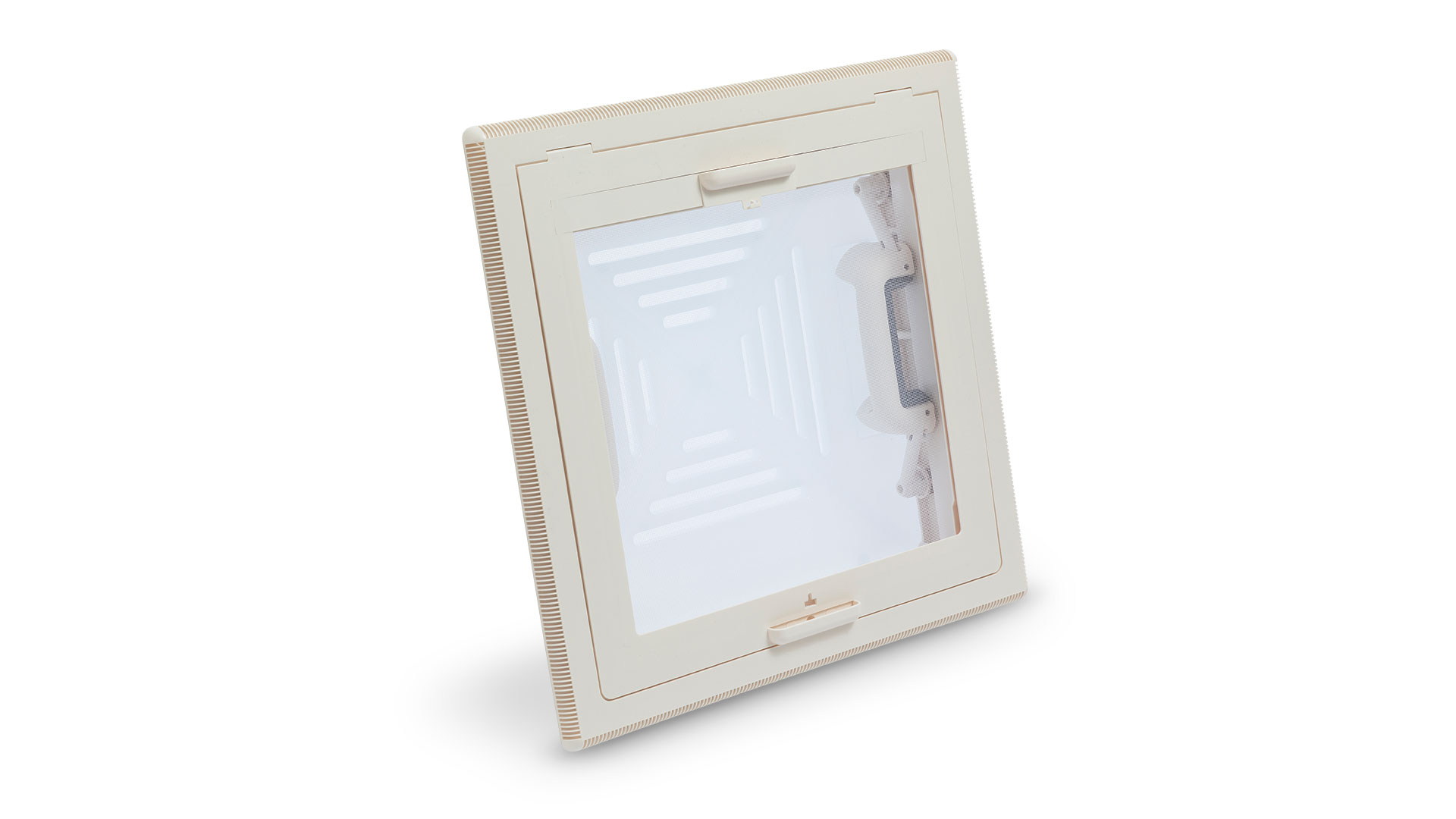

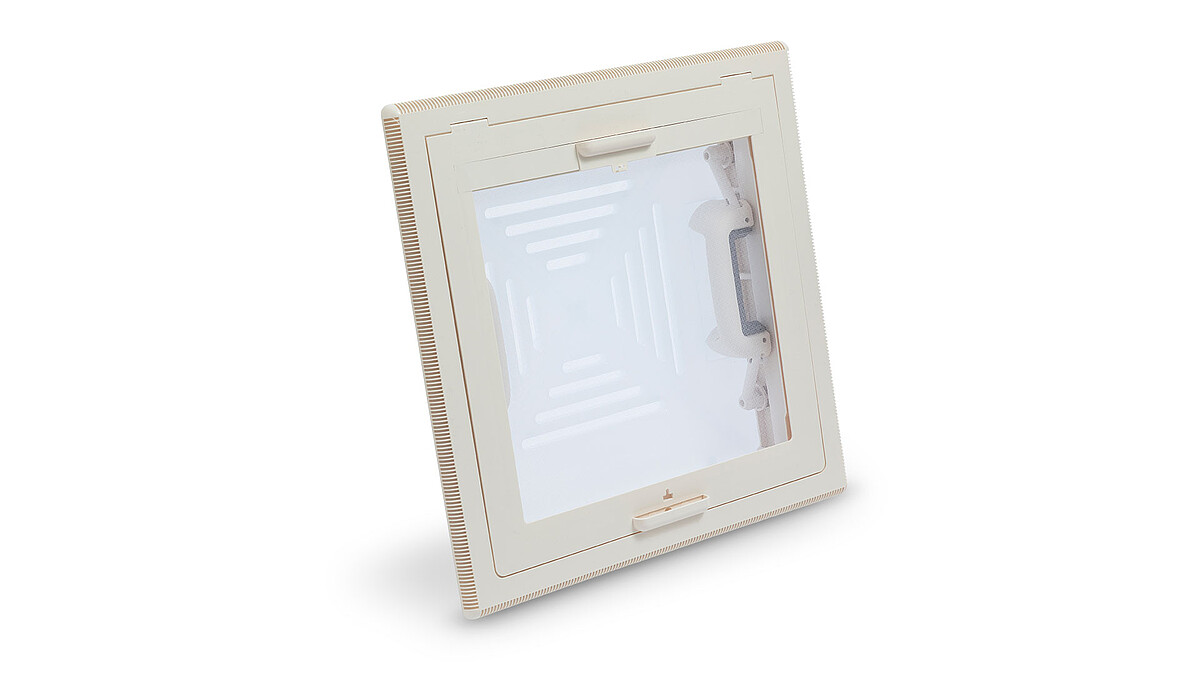

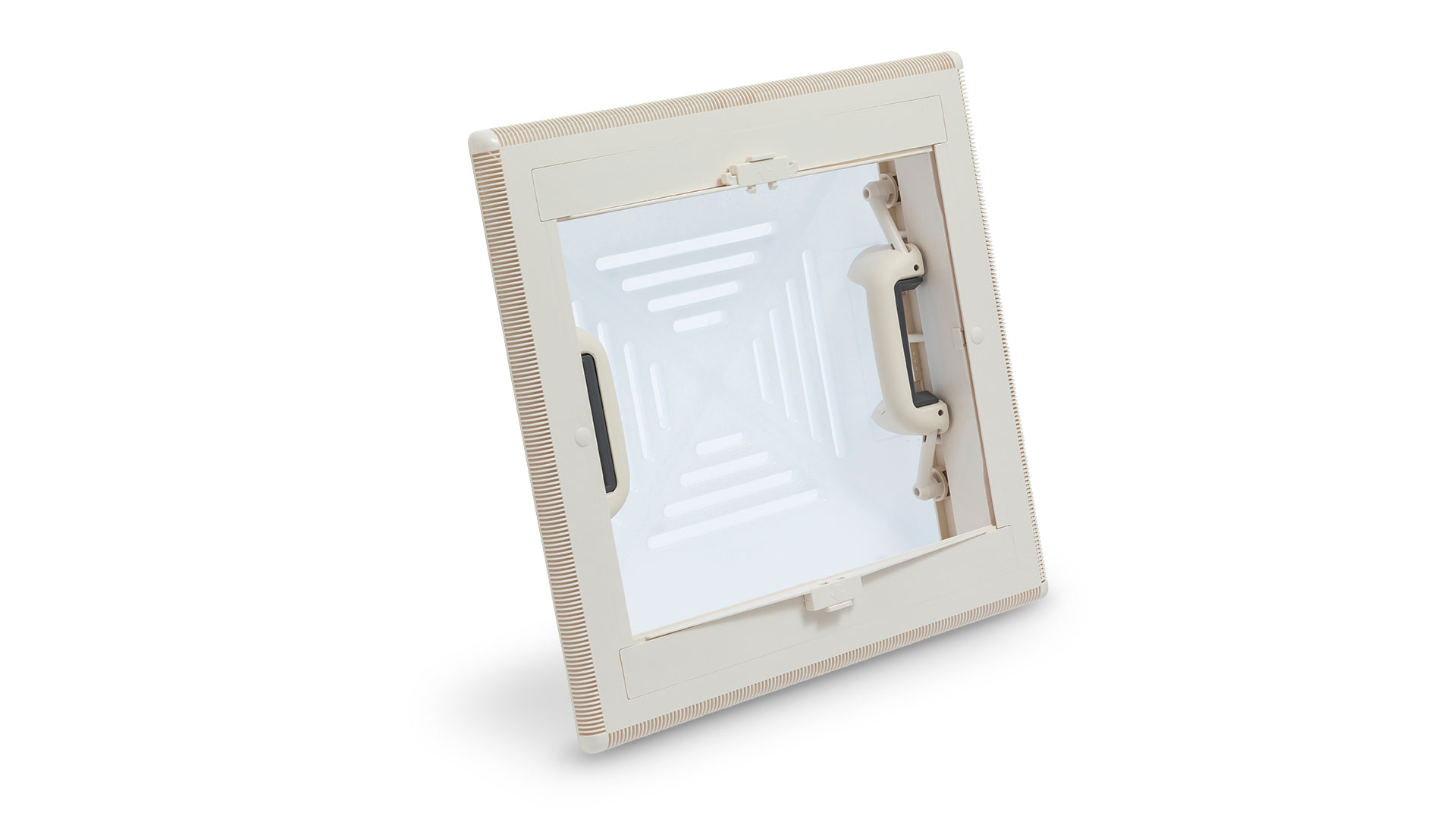

- Optionally with double roller blind combination frame (470 x 470 x 14 mm), folding net frame with or without blackout roller blind or pleated frame (also with LED).
- Approval: ECE R43 -019649
Technical data
| Cut-out dimension | 400 x 400 mm |
|---|---|
| Roof thicknesses from - to | 24-56 mm und 42-70 mm |
| Corner radius | 23 mm |
| Dome size | 470 x 470 mm |
| Continuous ventilation | 150 cm² |
| Height above roof | 91 mm |
| Frame dimensions | 470 x 470 x 14 mm |
| Recommended maxi-mum speed | 130 km/h |
Article numbers
| Roller blind | Roller blind Frame colour white | Frame colour grey | Frame colour beige | Weight ap-prox. |
|---|---|---|---|---|
| Without | 420VNW | 420VNG | 420VNB | 2250 g |
| With | 420VNRW | 420VNRG | 420VNRB | 2390 g |
| Without | 421VNW | - | 421VNB | 2340 g |
| With | 421VNR | - | 421VNRB | 2480 g |
