Model 29

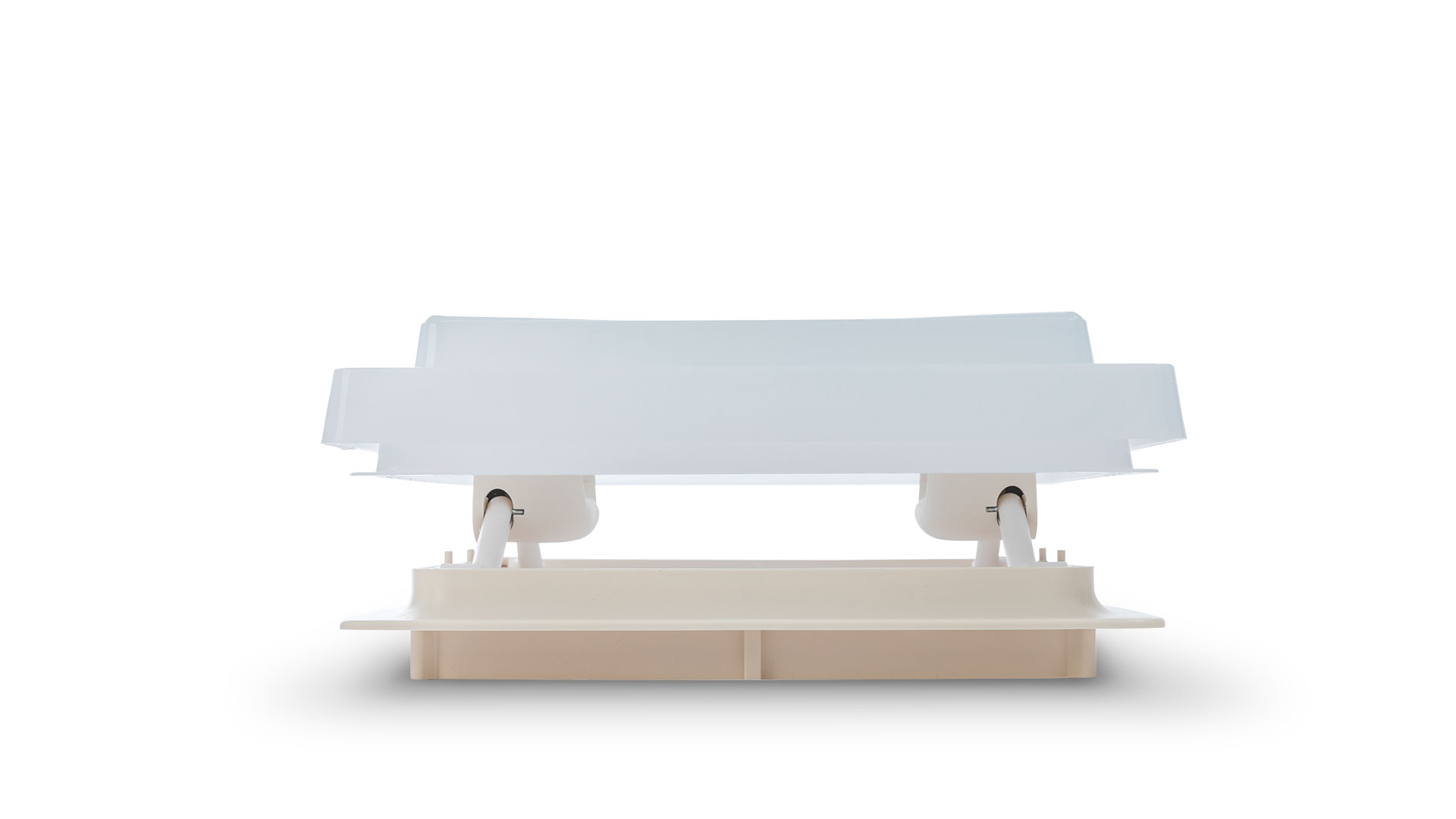

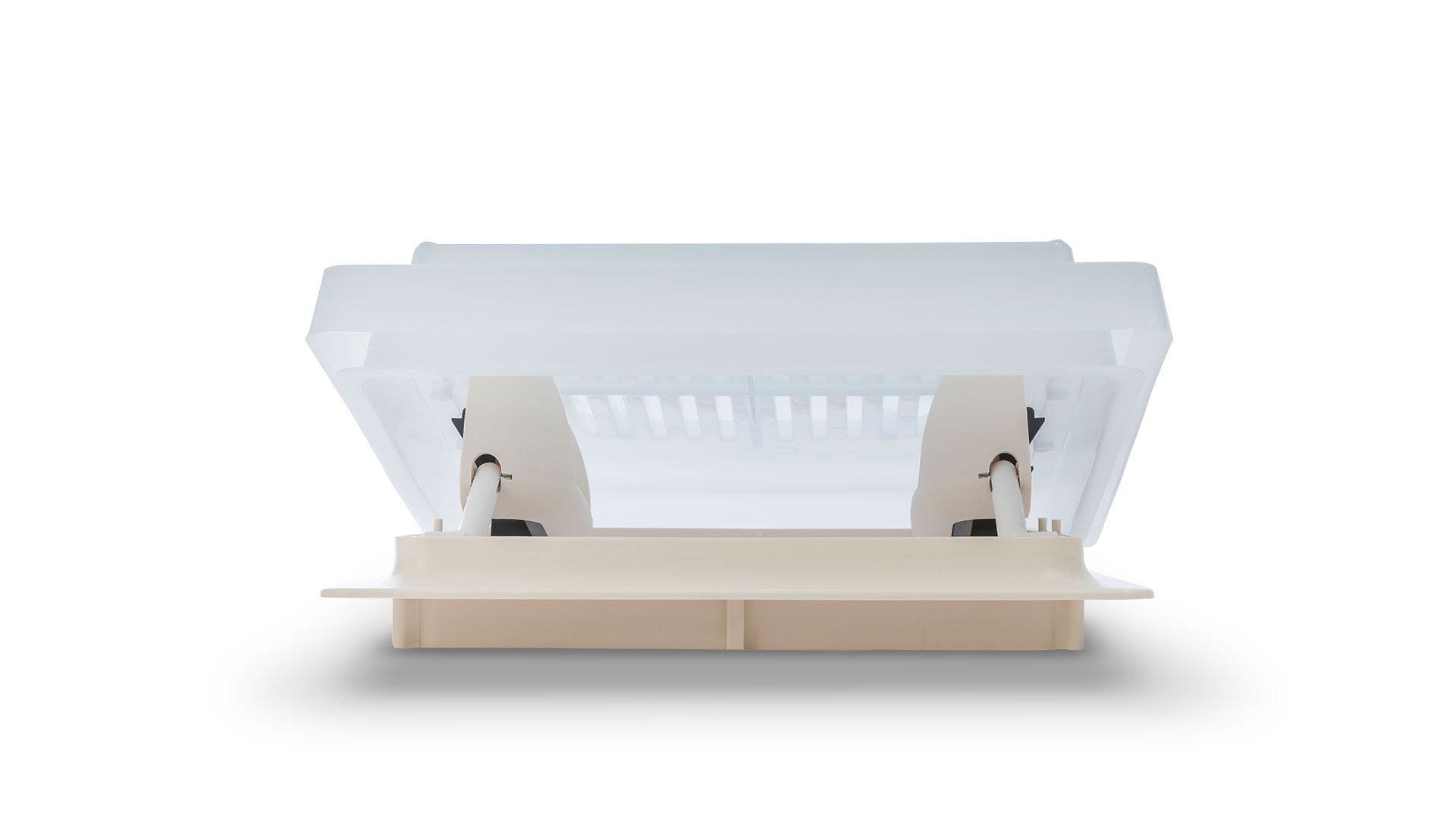

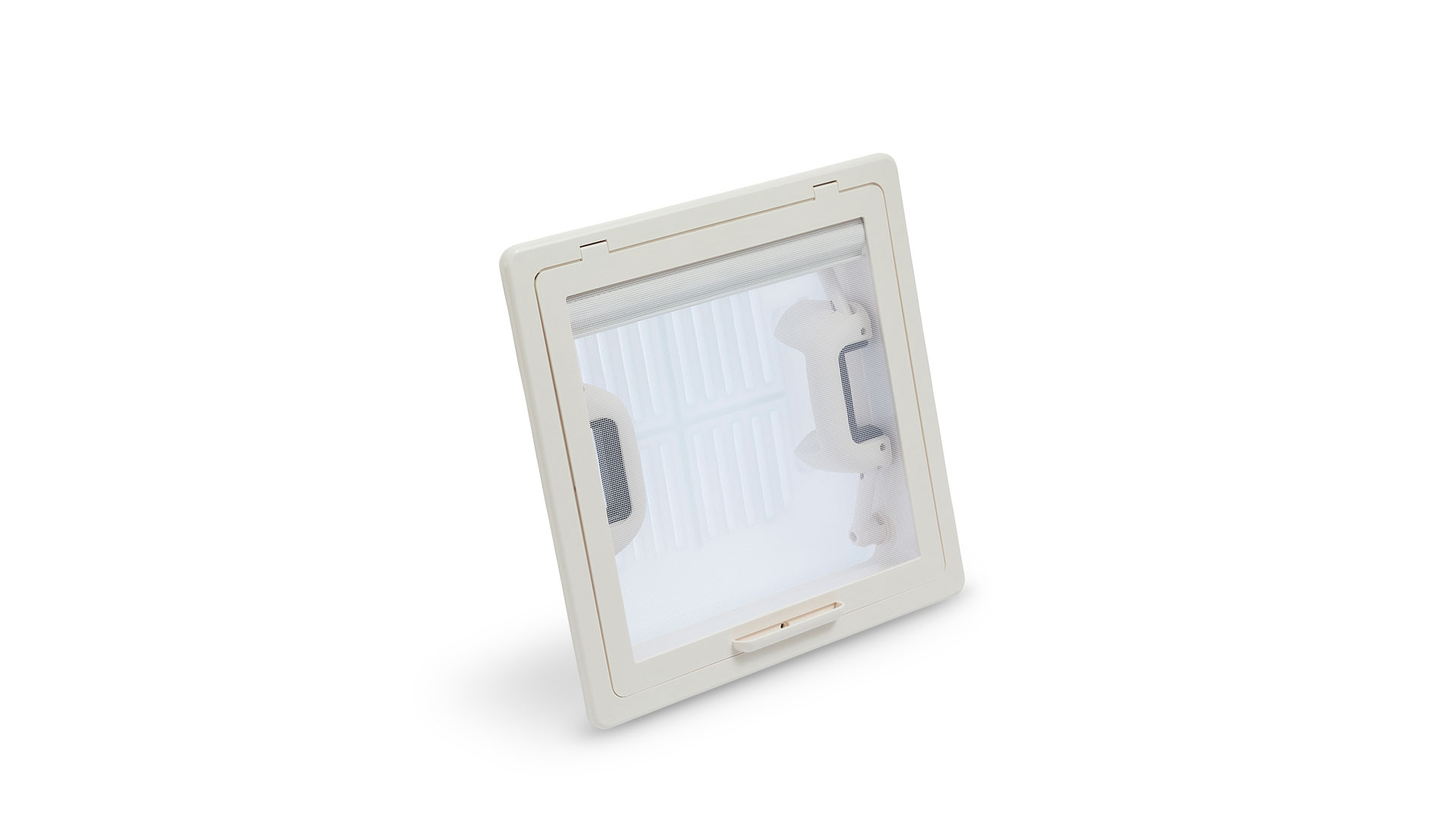

Model 29 is our smallest rooflight. It provides fresh air in the camper van and, thanks to polypropylene frosted glass, also gentle daylight in the interior. A fold-down mesh frame protects against insects and lets light and air into the interior of the caravan, while the optional roller blind provides blackout and a pleasant night's sleep.


  • Small, space-saving milk glass dome made of polypropylene
  • Telescopic display unit, tiltable on four sides, with locking device
  • Folding frame with mosquito net, roller blind optional
  • Optionally also with double pleated inner frame
  • Approval: ECE R43 -019649

Technical data

Cut-out dimension 280 x 280 mm
Roof thicknesses from - to 24-46 mm und 42-72 mm
Corner radius 18 mm
Dome size 330 x 330 mm
Continuous ventilation 60 cm²
Height above roof 78 mm
Frame dimensions 314 x 314 x 9 mm
Recommended maximum speed 130 km/h

Article numbers

Roof thickness From - to Roller blind Frame colour white Frame colour grey Frame colour beige Weight approx.
24-46 mm Without 290VNW 290VNG 290VNB 1180 g
24-46 mm With 290VNRW - 290VNRB 1280 g
46-72 mm Without 290VNW - 291VNB 1250 g
46-72 mm With 290VNR - 291VNRB 1350 g


Installation and Operating instructions Model 29
pdf, 345.4 KB
