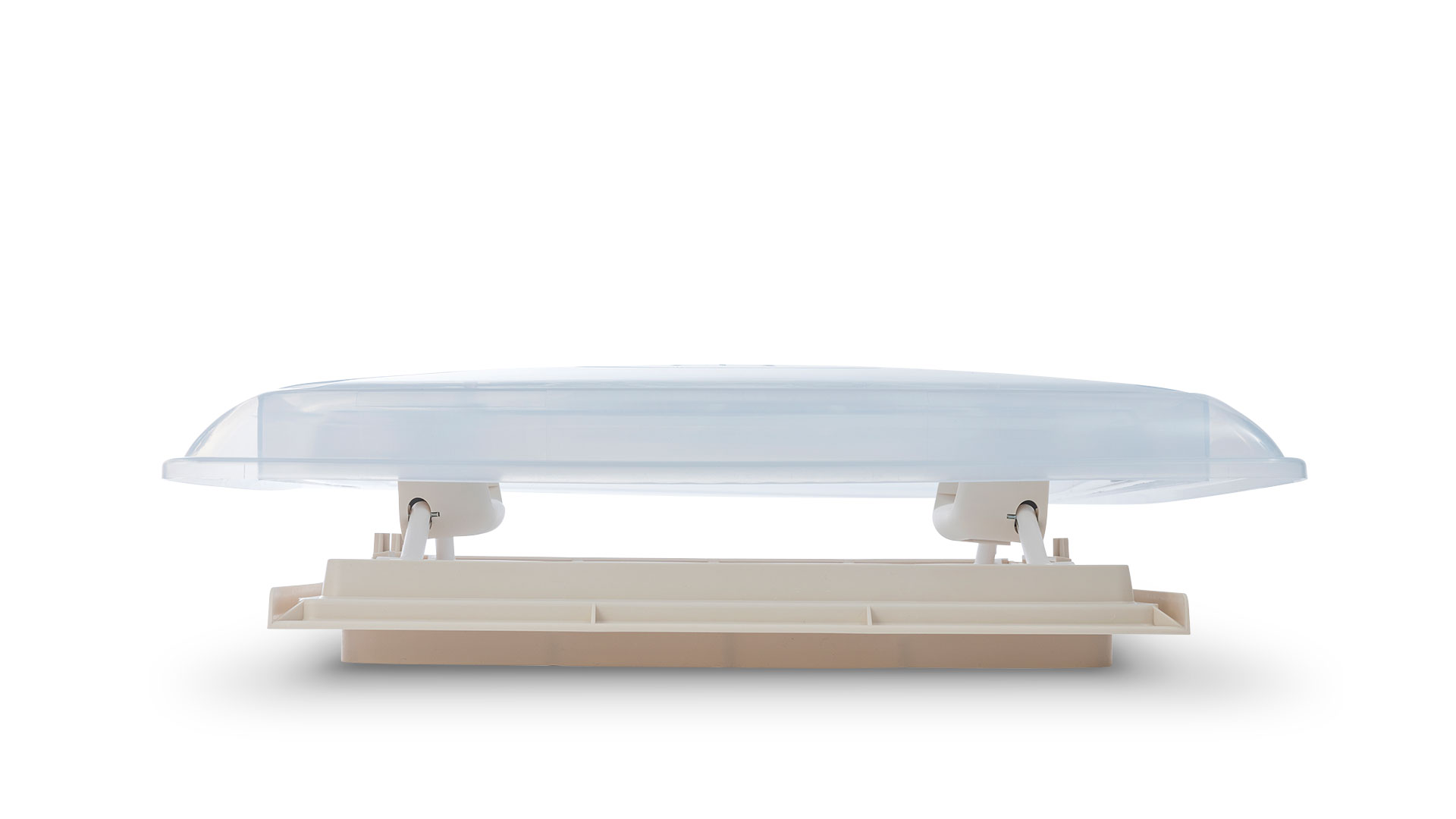

The rooflight model 4600 provides fresh air supply in the camper and thanks to transparent polypropylene also for a lot of daylight in the interior. On the outside, a large overhang and snow and splash protection edge protect against water penetration, while on the inside, a fold-down mesh frame and optional blackout blind provide protection against insects and sunlight.
Properties
- Outer dome made of transparent polypropylene with large overhang
- with snow and splash protection edge

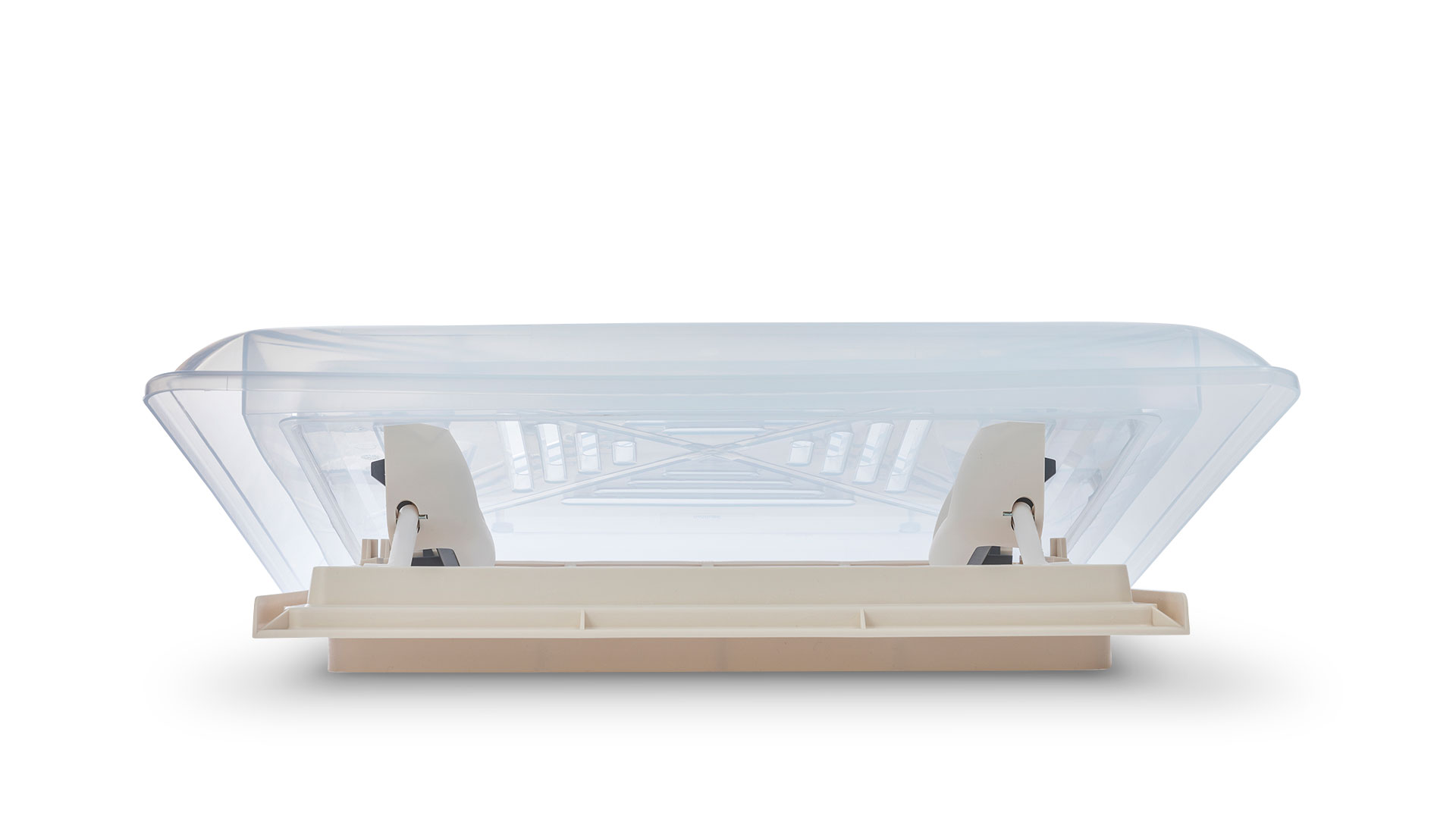

- Telescopic opener, tiltable on all four sides, with locking mechanism
- Optional with double-blind combination frame (470 x 470 x 14 mm), foldable
- mesh frame with or without blackout blind or pleated blind frame (also available with LED)
- Approval: ECE R43 -019649
Technical data
| Cut-out dimension | 400 x 400 mm |
|---|---|
| Roof thicknesses from - to | 24-56 mm und 42-70 mm |
| Corner radius | 23 mm |
| Dome size | 560 x 560 mm |
| Continuous ventilation | 150 cm² |
| Height above roof | 92 mm |
| Frame dimensions | 470 x 470 x 14 mm |
| Recommended maximum speed | 130 km/h |
Article numbers
| Roof thicknesses from - to | Roller blind | Frame colour white | Frame colour grey | Frame colour beige | Weight approx |
|---|---|---|---|---|---|
| 24-56 mm | without | 4600VNW | 4600VNG | 4600VNB | 2715 g |
| 24-56 mm | with | 4600VNRW | 4600VNRG | 4600VNRB | 2855 g |
| 42-70 mm | without | 4610VNW | - | 4610VNB | 2805 g |
| 42-70 mm | with | 4610VNRW | - | 4610VNRB | 2945 g |
